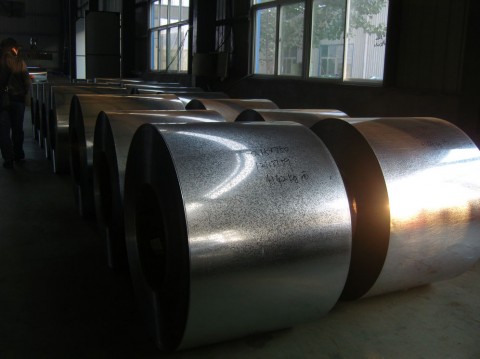

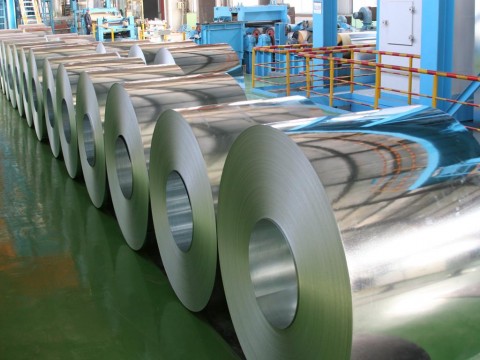

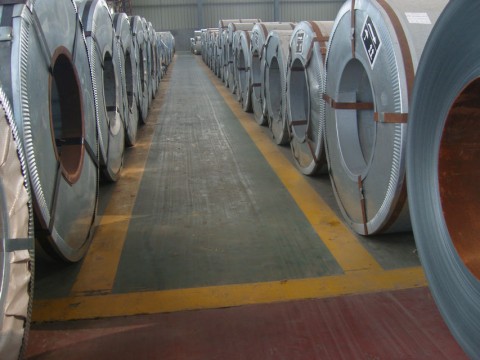

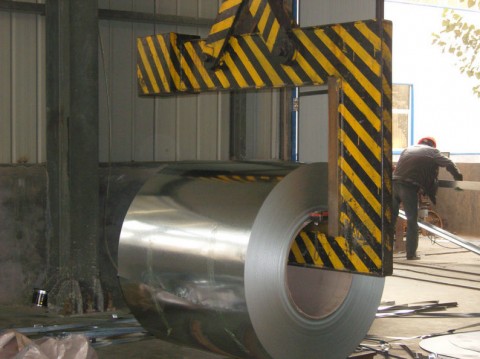

Hot Dip Galvanized Steel Coil

Hot Dip Galvanized steel features excellent forming properties, paintability, weldability, and is suitable for fabrication by forming, pressing and bending. It is Environmental Friendly resource because of its longevity in corrosion protection, low environmental cost, and 100% recyclability.

Category:

Hot Dip Galvanized Steel Coil
Custom sizes and thickness are available.

  • Thickness: 0.13mm-0.7mm
  • Width: 600mm-1250mm
  • Zinc Coating: 30-200g/m2
  • Internal Diameter: 508mm/610mm
  • Coil Weight: 3-12MT
  • Quality: commercial and structural quality
  • Surface Treatment: regular and minimum spangle, zero spangle, oiled and dry , chromated , non-skin pass ,skin pass
  • Standard: JIS G 3302, ASTM A 653M, EN 10327
  • Steel Grade: SGCC, CS, FS, SS, LFQ, DX51D+Z , S280GD

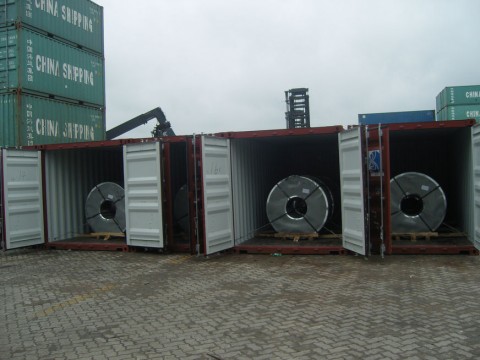

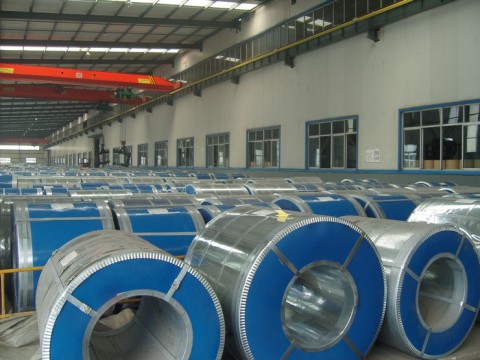

  • Package: full wrapped with anti-damped paper inside, iron sheet wrapped outside, and bundled by iron strips

Technical Data

  • C: 0.04-0.06%
  • Si: 0.01-0.03%
  • Mn: 0.18-0.22%
  • P: 0.014-0.016%
  • S: 0.006%-0.009%
  • Yield Strength: (Mpa) 280-320
  • Tensile Strength: (Mpa) 340-390
  • Elongation: 20%-30%
  • Out-of-square: not exceed 1% Flatness
  • Bow: 15mmmax
  • Edge Wave: 9mmmax
  • Centre Buckle: 8mmmax
  • Bending At 180 Degree: No crack, purling and fraction

Application
It can be widely used in transportation, light industry, civil usage and farming. It is also the perfect building material in construction for making roofing tile, steel profiles for wall partition, T-bar, studs, fireproof door, air conditioning duct and home appliance.
